Friday, August 22, 2014

Traffic In Edgewater revisited

[Reply to a post in Streetsblog]

Traffic in Edgewater must be considered as a whole community. Treating traffic only on Ridge will raise the hackles of community members along the other routes. It means dealing with traffic on Sheridan, Broadway, Ridge, Hollywood, Peterson and north bound Ridge.

There are only two grand solutions to traffic in Edgewater and the second forces the issue on the first.
The best solution likely is extending LSD north to Evanston. My preferred solution is the Proppe & Green version. http://www.gpdchicago.com/urb_... . The standard cynical reply is that the lakefront owners will not approve. First I don't believe that and second it is not their decision to make. The lakefront is a City/State/National/Planetary treasure. Many more people have a stake in its use than a few people that live there along Sheridan Road.

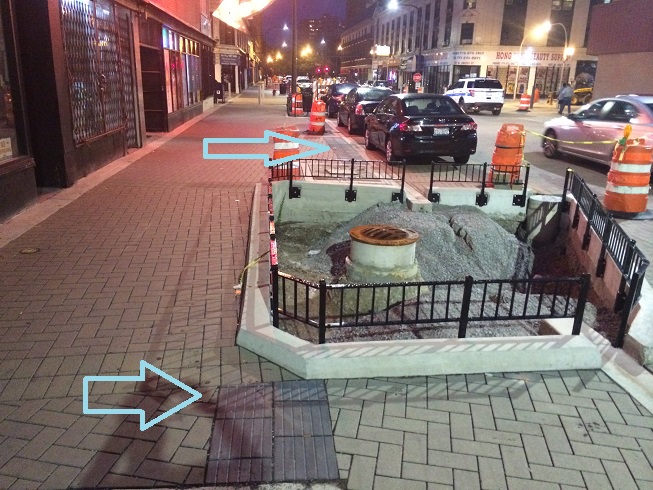

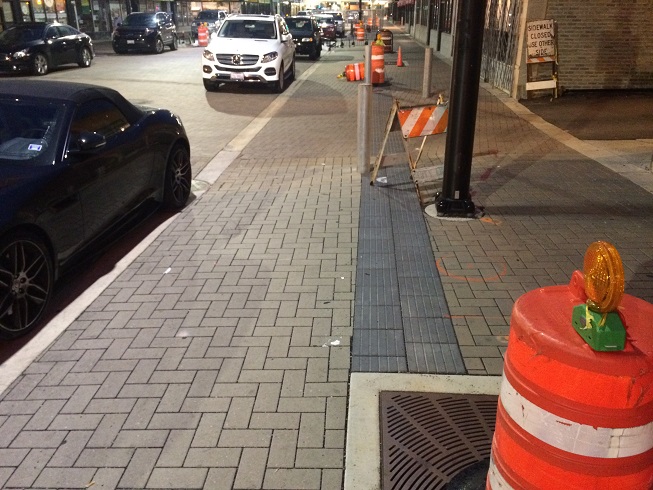

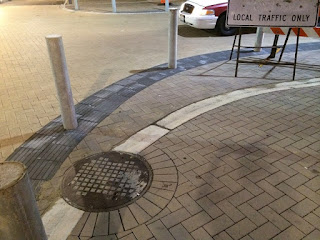

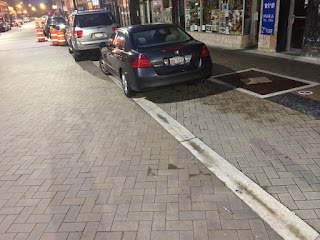

The second solution is to just do it. All of the roads mentioned above, except possibly northbound Ridge are candidates for road diets. And here's the little known reality about all the non-Edgewater traffic that uses those roads. The corner of Sheridan and Hollyoood, the entry/exit of LSD, is a bottleneck. That is the limiting factor for the amount of traffic that can pass through Edgewater. Making roads wider will not increase the flow. And likewise, a lot of roads can be made narrower without decreasing the flow through Edgewater either. That is the nature of a bottle-neck.

The extra road space that exists now serves as the bottle that holds the traffic waiting to get through the neighborhood. It is merely temporary parking for folks waiting for the bottle neck to clear for their turn to get through. Why not have them wait in another neighborhood, like their own? You know the lights on ramps onto expressways that make you wait your turn during high traffic? Well in essence narrowing the Edgewater roads would serve the same function.

But even squeezing out the excess cars during rush hour still will not reduce traffic enough for returning the neighborhood to a reasonably pedestrian friendly one. For that we need to just say NO. For that the neighborhood needs to size the streets to appropriate sizes needed for a typical Chicago city neighborhood. If there are screams from the through riding outsiders , especially the north shore sub-urbanites, then they can go find the money to fund the win-win solution for us all, the two-lane each way LSD extension in the lake.

Friday, April 04, 2014

Confessions of a NIMBY

I'm ashamed of what I did.

I have always considered myself an urbanist. Specifically and especially an anti-car urbanist. I was proud of the fact that I did not own a car until I finally got married and had kids. Kids are the biggest excuse we tell ourselves about why we succumb to the car fetish. We are stealing time from them if we do not use a car. But I'm not ashamed of that.

I have seen cities where cars are not king. Or at least parts of cities. When I first saw the French Quarter of New Orleans I was amazed at how big it was. I had always pictured it in my mind as a single corner around the famous iron-trellised picture of Bourbon street. That it extended a mile in one direction and a mile and a quarter in the other I had not expected. Cars are allowed in the French Quarter just like cars were allowed in the Maxwell Street market of the Chicago of yore. But you only take a car if you absolutely must. Say you are an invalid and your wheel-chair is broken or the battery is dead. Or you pay really big bucks to have a house there with a parking space.

Otherwise the pedestrian is king in the French Quarter. Even bicycles must moderate their pace.

When I got to Paris, France I was amazed. The car in Paris is still overly worshiped, don't get me wrong. But in the last 15 years, I am told, there has been steady push back. First they never finished the special car speedway along the Seine. Then they took over entire lanes of many streets to convert to bus and bike only. Paris always a walkable city became even more walkable.

Amsterdam is the only city where I was anxious about all the bicyclers. There the bicycle is closest to king. Since trollies traverse the central city, with a day-pass one walks and trams it with ease.

Edgewater we are told is one of, if not the densest neighborhood in the city. The wall of highrises fronting the lake along with the corridor's four-plus-ones and bigger provide the density for a quality urban environment. It's no accident that our two Dominicks were snapped up by Mariano's and Wholefoods.

Edgewater also has the diversity a quality urban environment needs. With middle middle-class in the high-rises and lower middle-class in the corridor and upper middle-class in Lakewood-Balmoral and Edegewater Glen we make space for that diversity. We are indeed privileged to live here.

But with privilege comes responsibility. We are privileged to live so close to the lake for instance. We are privileged to have very high quality transit both in the el and the express buses on Sheridan. Some of us are even privileged to own single family homes with garages in this dense quality urban environment.

It is that last privilege that led me astray into NIMBYism. I supported and actively worked for, both as an individual and as a community leader, efforts to prevent buildings beyond four stories on the west side of Broadway between Devon and Hollywood. I was even given the chance to recognize my NIBMY status when an architect friend pointed out that narrower Paris streets commonly house six, seven and eight story buildings. In my defense I will claim that I was swept away by my desire to get along with my neighbors. Peer pressure, you know.

My own block was already protected by zoning that prevents larger than three or six flats. And across the street the zoning only allows for single family homes. But like the NRA, I likely saw encroachment of bigger buildings on the west side of Broadway as a slippery-slope to th3 taking away of my home for a high-rise. Single family homes don't kill high-rises, people kill high-rises.

There will be future fights, pitting automobilist change against pedestrianist change. Higher buildings are denser buildings. Urban culture is about density. If we did not foster urbanism there would come a time when all would be sub-urban. Don't get me wrong. I think it is important that Edgewater have a single family quarter like mine. I just need to know my place. If I don't like density, I can always move to the suburbs.

Tuesday, February 04, 2014

Ashland BRT Snapshot Usage Calculator - Now 5-1 Cars - With BRT 2-1 Transit

Using this calculator I calculate that car riders on Ashland Avenue use five times as much of the street as bus riders on a per person basis.

After the installation of the Ashland BRT I calculate that transit riders will use twice as much of the street as car riders per person.

While that is still not fair it is more fair and forty years of unfairness favoring car riders might be paid back in as little as twenty years. However it is possible that if transit usage increases dramatically that before the twenty year payback is reached, the usage rates will have harmonized at equality. In that case we will have to extract the car rider debt some other way.

The link to the calculator is here --> https://docs.google.com/spreadsheet/ccc?key=0AhuYyrSSu7gPdFR6TVBLQVRDWVRlV0ZwNEh1X1FXZkE&usp=sharing

I believe that you can copy the spreadsheet and change the inputs to get your own calculations. If not, then let me know as that is my goal.















Before BRT









BikeTreeWalkBusCarTotal


Exclusive01.8103.26


Shared0000.22.83
Total01.810.269












After BRT









BikeTreeWalkBusCarTotal


Exclusive01.812.216


Shared0000.22.83


Total01.812.43.89












BusCar







0.26Total blocks used by vehicleCalculated from Above
5.55.5Blocks in snapshotDistance between each bus
11Speed factorHow much faster the faster vechicle goes
1260vehicles in snapshotTotal vehicles in the Snapshot
For cars used 50,60,30,40,50,30 for 5.5 blocks
551.25Persons per VehiclePer Tom Fraeser for cars






Calculations
55325Persons Total
1059.1Persons per block
1059.1Persons per block adjusted for speed
0.020.102Blocks per person usage





5.1Advantage






AFTER BRT




BusCar





2.43.8Total blocks used by vehicle
1111Blocks in snapshot
21Speed factor
1260vehicles in snapshotThis number for cars reflects the loss of a lane.
551.25Persons per Vehicle






Calculations
55325Persons Total
529.5Persons per block
1029.5Persons per block adjusted for speed
0.240.129Blocks per person usage








1.9
Advantage

 Lets call this version 1.0 as already I see some clean up that could improve it. And since there will likely be more I will wait and do as much at once as I can.

---------------------------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------------------------
I started a formal post. Below are the appendices for that formal post. In the appendices are some explanations for some of my methodology. I'm sorry this is all so rough and I hope to bring it all together in a more polished fashion. But for now this is it.


Apendix A: Tom Kaeser

Let’s make some assumptions. Let’s assume that there are 30,000 daily bus riders on the CTA Ashland #9 line. I know the CTA says 31,000 but we are going to be doing a lot of “let’s assume” and rounding is going to be our friend.

Lets  assume that there are 400,000 non-transit, i.e. non-bus, users of the the same Ashland Avenue. For the moment we will take Tom Kaeser’s informed and educated calculation, from his link’s word for it.

So using the magic of rounding we get 7% of Ashland’s daily use is on a bus and 93% is not on a bus. We’ll just park that number for the moment.



Take Away: 93% car, 7% bus

Who’s on the Bus
Appendix B: Static View Wrightwood to Blackhawk

Tthe #9 bus schedule on a weekday:
Ashland & Wrightwood
08:16 am
08:21 am
08:27 am
08:32 am




Ashland & Blackhawk
08:27 am
08:32 am
08:38 am
08:43 am




Wrightwood and Blackhawk are conveniently 11 blocks apart. It takes the bus a minute to go each block. The buses are five and a half minutes apart. So if we could take a picture we could see three buses on that stretch, one at Wrightwood and one around Armitage and one at Blackhawk, more or less. Five and a half minutes and five and a half blocks apart. Now lets assume that there are 55 people on each of the buses. Not unreasonable at 8:30 am. Anyway a convenient assumption as it gives us a nice round number of 10 people per block.

How many cars are there on each of those blocks. Actually on average, because the block between Altgeld and Fullerton (picture at right) is likely totally jammed at 8:30 am as the three way corner with Clybourn and Fullerton is a bottleneck for south bound Ashland. But then the block over the river is likely mostly empty going south. Looking at the current Google Satellite picture of that block on the southbound side one can count 40ish cars there with plenty of space for another ten to twenty more. It’s an afternoon shot.

So lets assume for the blocks going south of Wrightwood we have 50, 60, 30, 40, 50 and the next half block 30 or 260 for five and a half blocks, or 47 average per block. Lets call it 50. Kaeser would have us add another 12.5 people for his 1.25 people per car. Ok so lets compromise and say 60 non-bus users on each block. That’s a usage rate of 14% bus and 86% non-bus. (10/70 and 60/70)

So which numbers do we use? The 7% and 93% or the 14% and 86%. I say we use the 14/86 numbers because the potential for carmageddon is during the rush hours. Therefore the numbers derived from our eyeballing the street at an instant of time in the morning are more relevant in assessing this carmageddon.

Take Away: 86% car, 14% bus

Appendix C: cjlane percents

Disqus user cjlane: -> http://chi.streetsblog.org/2014/01/27/daniel-hertz-sets-the-record-straight-on-brt/#comment-1222166862
"nearly half the travelers on the street"

“Look upthread at the chart of the ridership of the 9--the peak in any stretch is 6,000 per day. Credit BRT with a 50% increase (which is beyond the projections I have seen) and you get peak daily ridership of 9,000 in the busiest stretch. The busiest stretches for total vehicles are presently around 36,000 per day. Multiple that by 1.5/vehicle (happy to use a better factor, if you have one) you have peak PEOPLE traveling on Ashland of 54,000 (not counting transit riders).
BRT improves travel times for 15% of users, while degrading it for 85%.”

Now I would use Tom Fraesers number of 1.25 riders per car. That would give us 45,000 car riders or 51,000 total current users at the busiest times. 6/51 = 12% and 45/51 = 88%. So his numbers are close to my model.

Take Away: 88% car, 12% bus riders

How is the Street Being Used


Appendix D: Current Street Usage by Geometry

Now for something completely different lets run some assumptions over street usage. For this I am creating two categories, exclusive usage and shared usage. In the end I will pretty much ignore the difference and just do calculations using the total of the two. But it’s still an interesting exercise.

As an example of exclusive usage picture the sidewalk along the edge of the street. That’s a usage I would call exclusive for walkers or pedestrians. For shared usage picture the right hand travel lane. It is used by cars and buses both and trucks and bikes too. That’s a shared lane. Besides the sidewalk there are three other exclusive lane users: parked cars, left turning cars and trees. For our purposes I consider trucks and cars synonymous users. And because the street is so hostile for bikers I consider them non-users. Therefore since buses effectively never turn left, I consider the partial left turn lane exclusive use by cars. Likewise you never see a parked bus (yes except breakdowns, come on we can ignore that here as well.) And trees, well, of course, nobody but the birds and squirrels share that space, so again exclusive.
Now going back to our snapshot view of the street as a static moment in time, I round the amount of space used by the various users to some tenth of a block. Therefore bus stops in the curb lane count as one tenth of a shared lane. It’s actually quite a bit less but a tenth is as low as I go. Remember there is only one bus per 5.5 blocks and when the bus is not there the space is shared by right turning cars. In the same vein I count the left turn lane as two tenths of an exclusive use lane. The other eight tenths is exclusive tree use lane.

I pretend that the curb lane is only half used for parking. The rest is shared use for…. Well really nothing but cars except the right turn lane which is not really all the other half. But whatever, it’s not really going to be important in the end because I will be using totals of shared and exclusive.

The big assumption is that the left travel lane is an exclusive lane for cars. Really it’s of little use for buses except for getting around double parkers etc.

Finally the sidewalk and parkway are half lanes in each direction for walkers and trees.

Here’s the table and the graph repeated from above after that:


Current Ashland Ave Lane Usage Assignments







  Bike
 Tree
 Walk
 Bus
 Car
 Total
Exclusive
0
1.8
1
0
3.2
6
Shared
0
0
0
0.2
2.8
3
Total
0
1.8
1
0.2
6
9
Lane usage divided by Car + Bus (6.2)



3%
97%



If we ignore the other users besides buses and cars we have the following percentages:

Of the total 6.2 lanes used by buses and cars 3% is used by buses (0.2/6.2) while 97% is used by cars (6/6.2). Or to put it another way 14% of the users of the street get 3% of the street to use while 86% get 97% of the street.

To do a lane per user calculation we need to double the users above because we are counting both directions: one hundredths (.01) (.2 lanes divided by 20 riders) of a lane per bus rider and five hundredths (.05) of a lane (6 lanes / 120 riders) per car rider.

1/100ths of a lane per Bus rider - 5/100ths of a lane per Car rider. Car riders get 5 times the street space as bus riders.

Takeaway: 5 to 1 advantage car over bus.

Appendix E: Street usage with BRT

Here the difficulty is trying to figure out the headway between the buses and the number of riders on the bus. I assume that the buses go twice as fast as now and therefore half the buses will suffice for the same capacity as is transported now. So I assume a five and a half minute headway with an 11 block separation.
